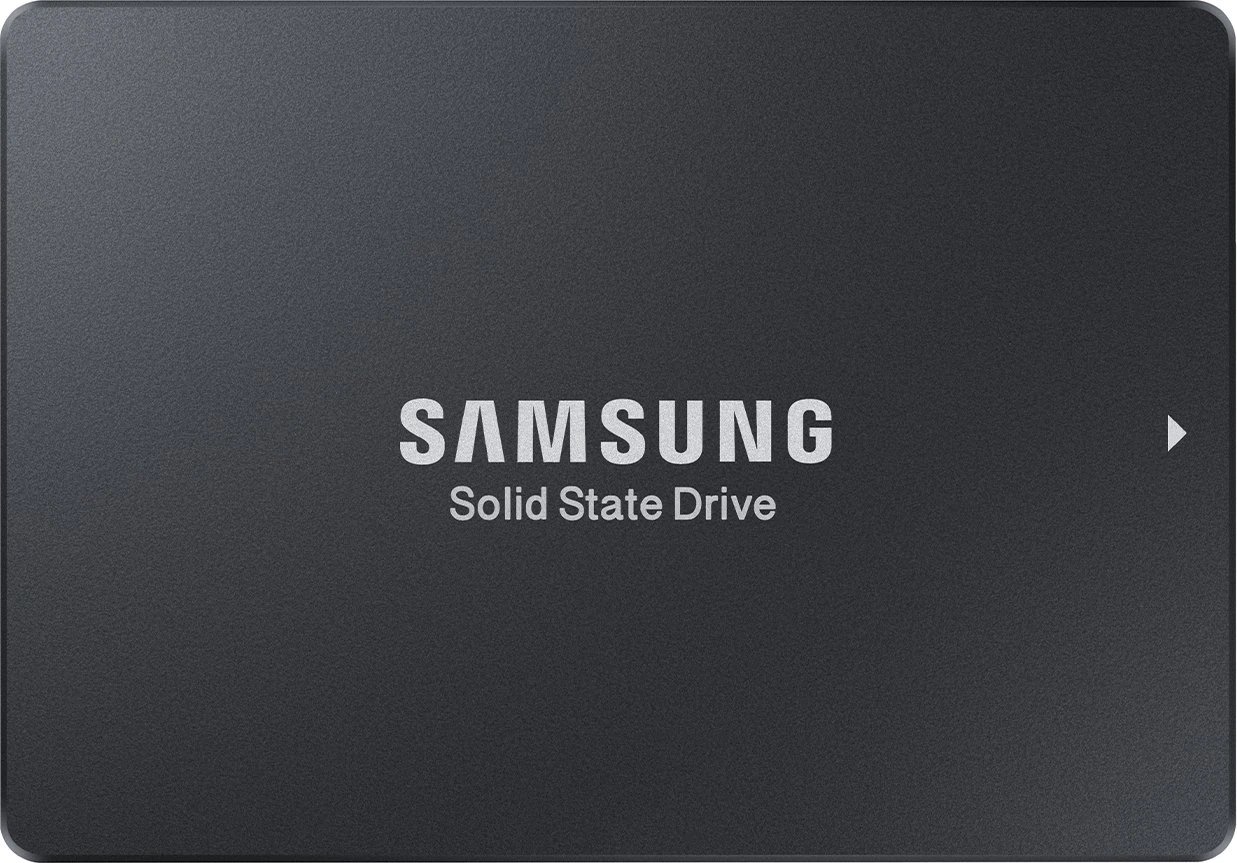

Samsung OEM Datacenter SSD PM893 240GB
SATA · AHCI · 2.5"
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 240 GB |
| Dimensions | 100x69.85x6.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 550 MB/s |
|---|---|
| Sequential Write | 380 MB/s |
| 4K Read (IOPS) | 98K |
| 4K Write (IOPS) | 15K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | LPDDR4; Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Samsung |
| NAND Layers | 128 |
| Controller | Samsung Metis |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 438 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES, TCG Opal 2.0 |
| Warranty | 3 years |
Heatsink
| Heatsink | No |
|---|
