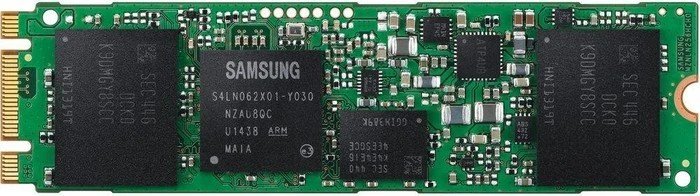

Samsung SSD 850 EVO 1TB
SATA · AHCI · M.2 2280
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x3.5mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 540 MB/s |
|---|---|
| Sequential Write | 520 MB/s |
| 4K Read (IOPS) | 97K |
| 4K Write (IOPS) | 89K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 1024 MB |
| Cache Note | LPDDR3 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Samsung |
| NAND Layers | 48 |
| Controller | Samsung MGX |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 150 TB |
|---|---|
| MTBF | 1.5 million hours |
| Encryption | 256bit AES, TCG Opal 2.0 |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
