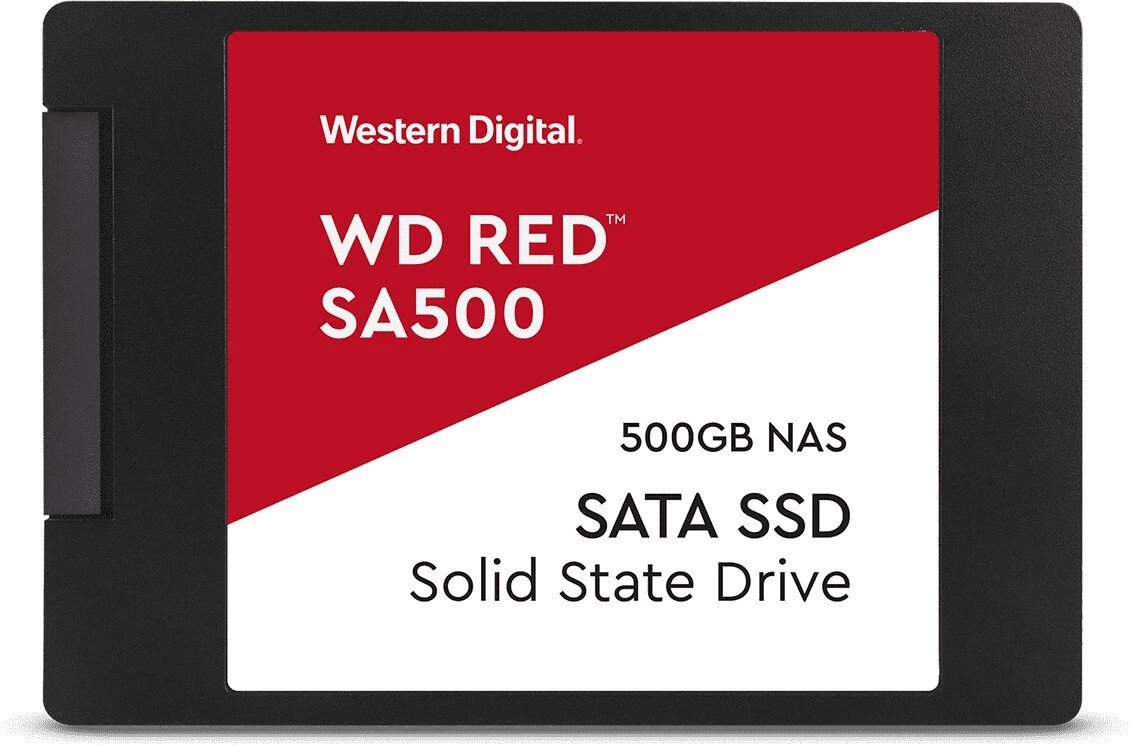

Western Digital WD Red SA500 NAS SATA SSD 500GB
SATA · AHCI · 2.5"
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 500 GB |
| Dimensions | 100x70x7mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 560 MB/s |
|---|---|
| Sequential Write | 530 MB/s |
| 4K Read (IOPS) | 95K |
| 4K Write (IOPS) | 85K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR3L-1866 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Toshiba/WD |
| Controller | Marvell 88SS1074 |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 350 TB |
|---|---|
| MTBF | 2 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
