ASUS TURBO RTX 3080

RTX 30 · TURBO RTX 3080 · RTX 3080

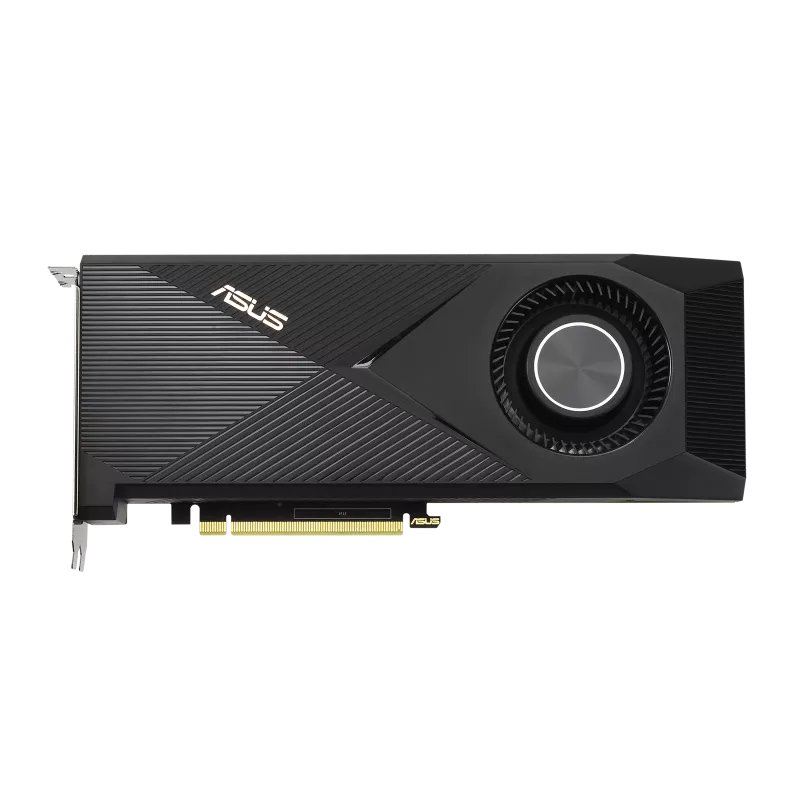

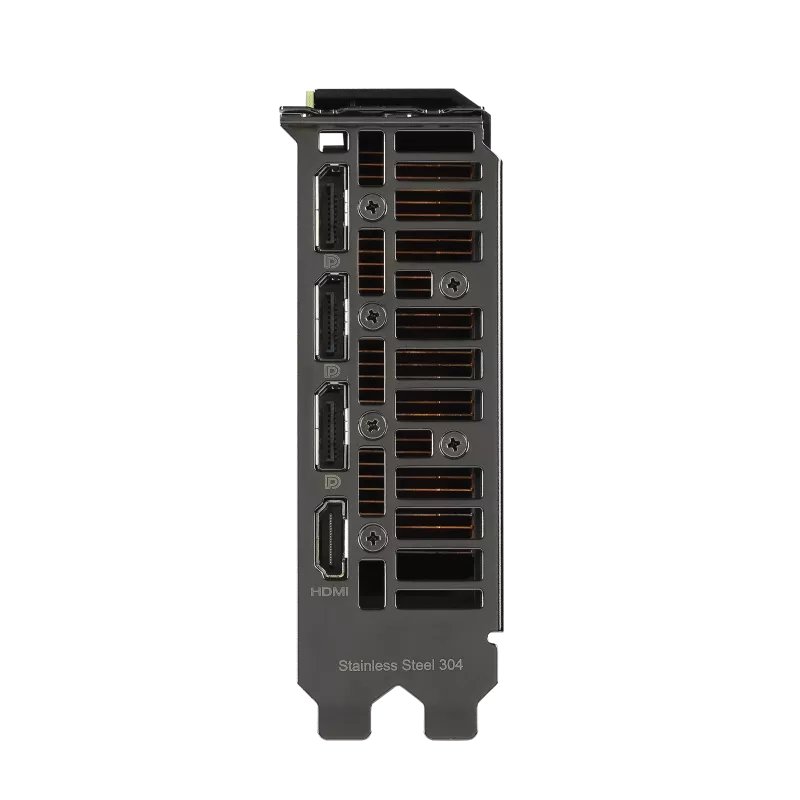

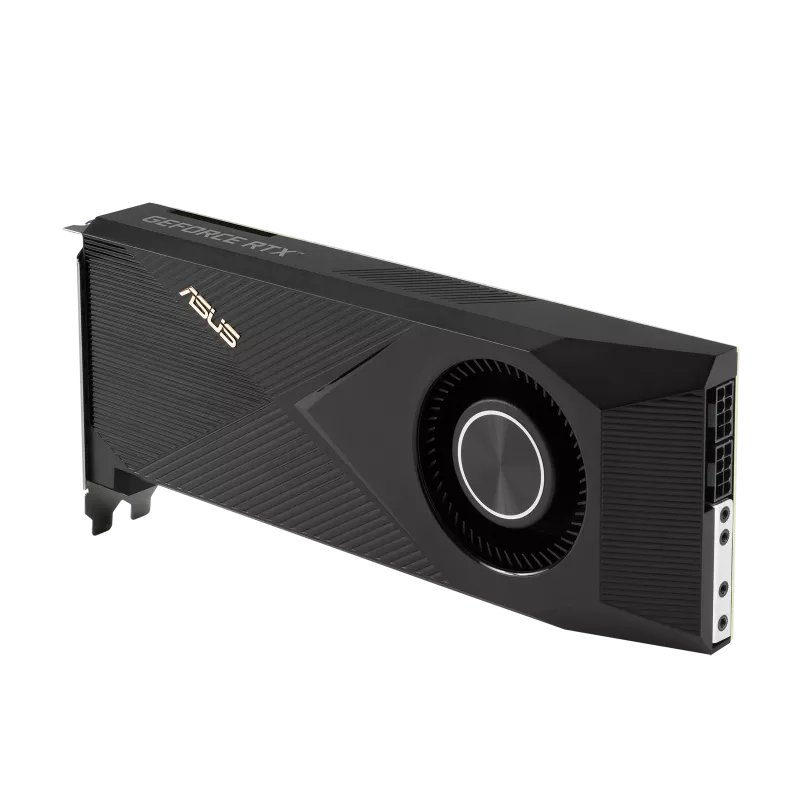

ASUS TURBO RTX 3080 product image
ASUS TURBO RTX 3080 product image 1ASUS TURBO RTX 3080 product image 2ASUS TURBO RTX 3080 product image 3

General

SeriesRTX 30
ModelTURBO RTX 3080
ChipRTX 3080
Launch Year2020
Release Date9/17/2020
Launch MSRP$699
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAmpere
GPU DieGA102 (GA102-200-KD-A1 / GA102-202-KD-A1)
FoundrySamsung · 8 nm
Transistors28.3 billion
Die Size628 mm²

Cores

Shading Units8704
TMUs272
ROPs96
SM / CU68
Tensor Cores272
RT Cores68
L2 Cache5 MB

Memory

VRAM10 GB
Memory TypeGDDR6X
Memory Bus320-bit
Memory Speed19 Gbps

Clocks and Power

Base Clock1440 MHz
Boost Clock1710 MHz
TDP320 W
Power Connector8-pin
Recommended PSU700 W

Compute (TFLOPS)

FP3229.77 TFLOPS
FP1629.77 TFLOPS
FP640.47 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count1
Liquid Cooling✗ No

Physical

Length268 mm
Width39 mm
Height113 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.6
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (7th Gen, max. Sessions: 8)
1x NVDEC (5th Gen)
Encoding
H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support)
H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit)
H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8bit / 10bit / 12bit)
VP8
VC-1
MPEG-2
MPEG-1
